Custom Prefabricated Steel Structure Bus Shelter Modular Metal Transit Station Canopy & Waiting Platform Frame

Lightweight Frame, Fast On-site Erection
Adopt thin-wall high-strength steel as main load-bearing frame material, the whole shelter structure is light yet rigid. All frame parts are pre-cut, pre-welded and pre-drilled in factory. No complex concrete foundation is required; the whole bus station can be fully assembled within 1–2 days after all steel components arrive on site, greatly shortening municipal road construction occupation time.
Multi-scene Customized Appearance & Layout
We support fully personalized design according to urban planning style. Adjustable canopy span, waiting area length, height of advertising light box, bench layout and safety barrier structure. Matching styles including minimalist city modern, retro landscape, campus simple type and highway rest transit station. The steel frame can reserve installation positions for LED billboards, solar panels, monitoring cameras and charging piles.
Excellent Weather & Environmental Adaptability
The steel frame undergoes professional surface anti-rust coating treatment, resisting ultraviolet aging, heavy rain corrosion, snow pressure and strong wind impact. Optimized drainage structure is reserved on canopy beam components to avoid rainwater accumulation and leakage, suitable for coastal humid cities, northern snowfall areas and high-temperature inland towns.
High Safety Performance for Public Crowds
All main steel beams and support columns adopt stable triangular force-bearing structure, with passed wind load and snow load simulation test. The edge of steel components is polished smoothly without sharp corners to prevent pedestrian scratches. Supporting anti-collision thickened steel guardrail design for roadside bus stops to improve public safety.
Low Long-term Operation & Maintenance Cost
Integrated steel frame structure has stable performance, no cracking, deformation or rust peeling within service cycle. Replacement and maintenance of individual components can be completed separately without dismantling the whole station frame. Compared with concrete and glass shelters, later maintenance labor and material costs are reduced by over 60%.
Environmentally Friendly & Reusable Modular Design
All steel structural frames can be disassembled completely and reused when urban road reconstruction or station relocation is needed, without generating a large amount of construction waste. The production process meets municipal green public infrastructure standards, matching carbon reduction requirements of global urban public transport projects.
All-round Municipal Engineering Matching Service
Our technical team cooperates with urban municipal design standards worldwide, compatible with Australian AS/NZS, European Eurocode and domestic GB public facility specifications. We provide full set of structural load calculation, installation drawing guidance and complete export certification documents for bidding projects.

Product Details

1. Product Overview

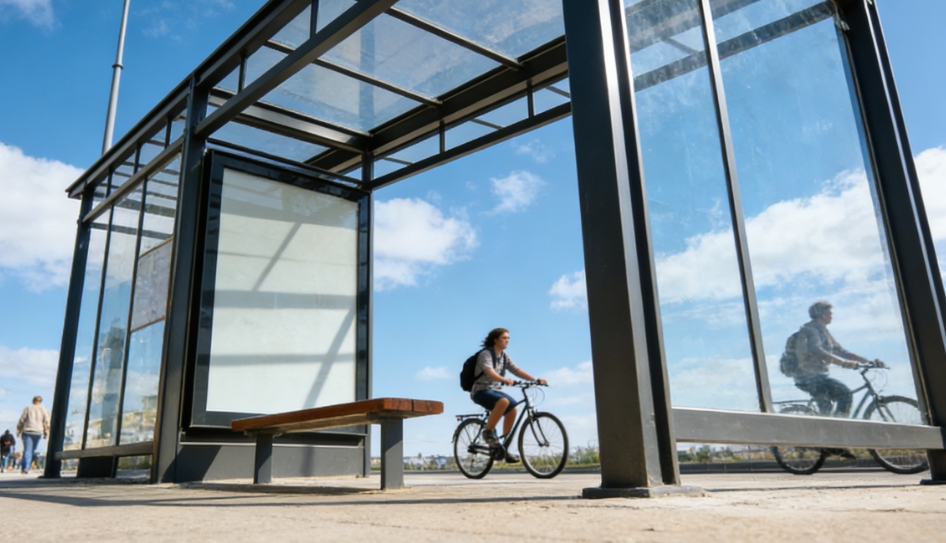

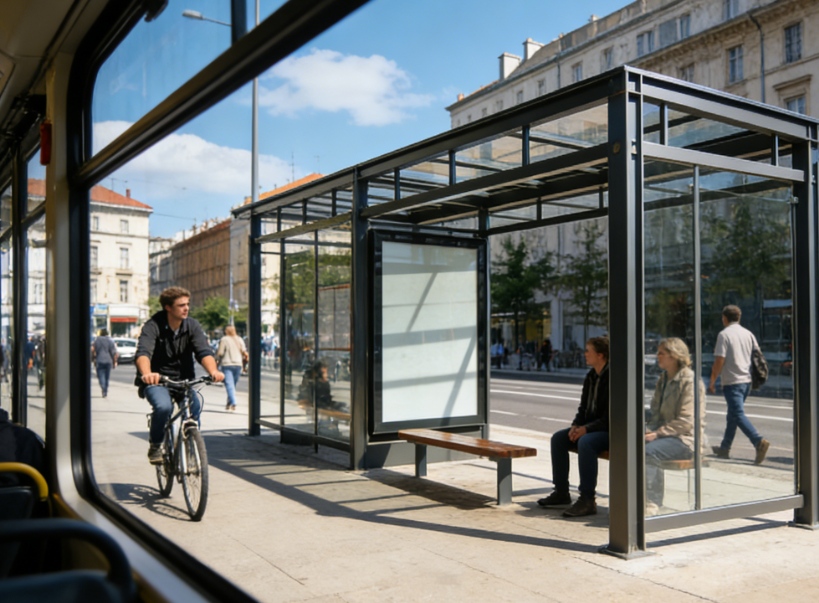

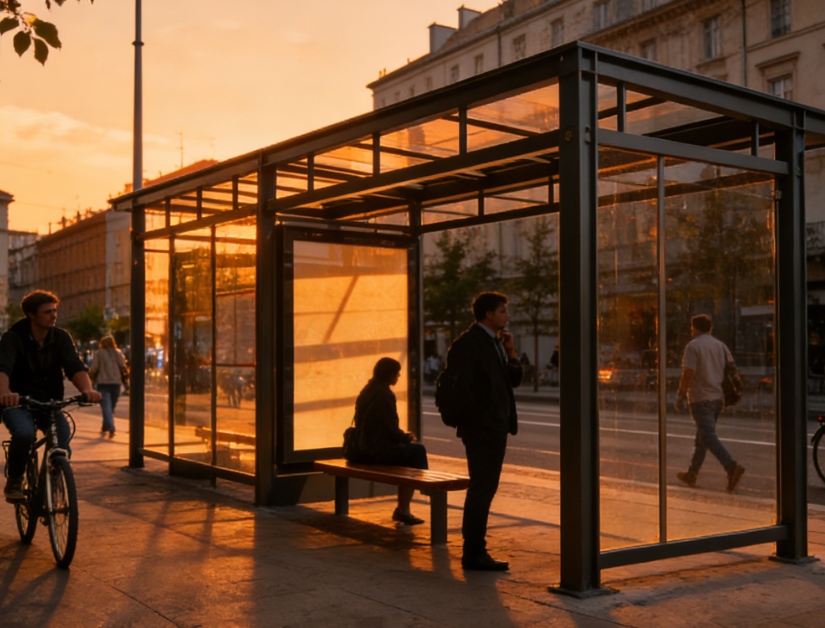

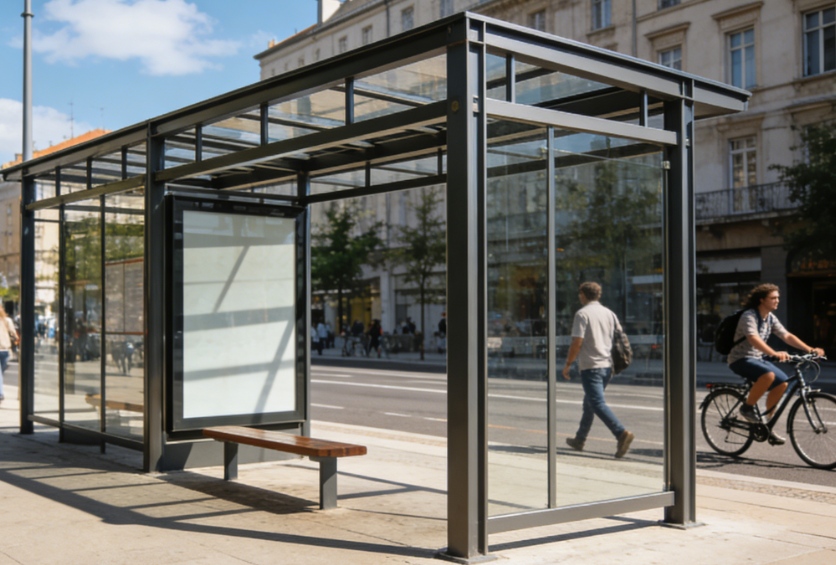

Prefabricated customized steel structure bus shelter is a standardized modular public transit facility, specially developed for urban bus stops, suburban transit stations, campus shuttle waiting areas and highway passenger transfer points. The whole set consists of main steel canopy beams, vertical support columns, side enclosing steel frames, bench fixing brackets, advertising box embedded frames and all connecting loose steel fittings. All structural steel pieces are finished in factory and delivered in separate packs for bolt assembly on site. It is the mainstream standardized public facility adopted by municipal government engineering, real estate supporting construction and scenic area transit matching projects.

2. Raw Material & Production Technology

Main Structural Material: High-strength Q235B & Q355B thin-walled profile steel, with balanced rigidity and self-weight to realize lightweight public facility design.
Main Steel Components: Welded I-beam canopy girders, square rectangular tube support columns, angle steel stabilizing bracings, channel steel bench fixing frames, round steel connecting accessories and customized special-shaped steel embedded parts for advertising equipment.

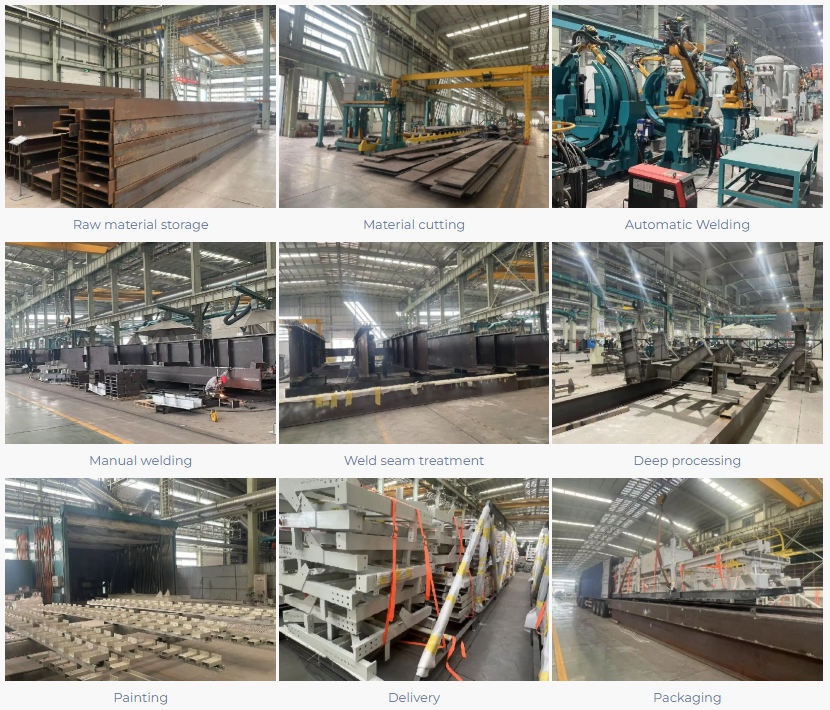

Core Production Flow: CNC numerical cutting, automatic precision welding, edge deburring polishing, multi-layer anti-rust coating spraying, finished product size full inspection before packaging shipment.

3. Production & Delivery Lead Time

The total manufacturing cycle of the whole set of bus station steel structure is 60–90 working days, calculated from receiving your advance payment and final confirmed design drawings. The first batch of main frame steel components will be delivered within 60–70 days. All steel parts are wrapped with shockproof protective materials and separated by partition brackets inside containers to avoid scratch and extrusion deformation during cross-border ocean and land transportation. We can lock long-term logistics freight in advance to avoid the impact of volatile transport prices on your project budget.

4. Wide Application Scenarios

Urban Municipal Construction: City roadside bus waiting stops, downtown interchange transit shelters, community supporting public transport stations
Campus & Park Facilities: School shuttle bus waiting areas, scenic spot sightseeing shuttle stations, park public rest shelters
Highway & Suburb Projects: County road passenger transfer stations, highway service area temporary waiting shelters, industrial park staff shuttle stops
Commercial Supporting Construction: Shopping mall shuttle bus stations, large residential community supporting transit facilities, hospital special passenger waiting areas

5. Design & Acceptance Standard

Structural load design strictly complies with public facility engineering standards of multiple regions, including China GB municipal public facility specification, Australian AS/NZS wind and snow load standard, European Eurocode light steel structure standard. We accept personalized design parameters submitted by customers, and adjust the steel frame cross-section and component layout according to local wind resistance, snow resistance and crowd load requirements. Each batch of finished steel frames will pass dimensional inspection, welding tightness test and coating anti-rust performance test before delivery, with complete material test reports provided together with goods.

6. Commercial & Shipment Specification Rules

Bill of Lading Rule: If no special requirement for original bill of lading is notified, we will arrange telex release by default. If the consignee column on B/L contains "TO ORDER", only original paper bill of lading can be issued.
Container VGM Regulation: VGM weight data must be submitted to terminal before container returning yard; delayed declaration will cause delay of container loading schedule.
Order Execution Rule: Once the formal production order is issued, order cancellation will not be accepted. Steel raw materials will be cut and processed immediately based on confirmed drawings after order confirmation.

7. Complete After-sales Support

Free pre-order design optimization, wind/snow load parameter calculation and layout drawing modification service
Complete export document set: commercial invoice, packing list, material quality certificate, structural inspection report
Remote one-on-one installation technical guidance throughout the assembly process; overseas on-site engineer support can be arranged upon customer request
Long-term supply of spare steel accessories such as connecting brackets, support columns and fixed frames for station renovation and maintenance
24-hour fast response for all design, production and logistics consultation during project cooperation
