Heavy-Duty Prefabricated Steel Structure Power Plant Frame Industrial Modular Steel Framework for Thermal & Renewable Power Station

Ultra-Heavy Load & High Temperature Resistant Structural Design
Customized high-strength thick-wall steel frameworks exclusively for power station core areas such as boiler rooms, turbine halls and waste heat workshops. The optimized beam-column bearing system can sustain long-term heavy equipment dead weight, dynamic vibration from generators and sustained high-temperature radiation environment. Special thermal expansion compensation structure eliminates deformation risks caused by frequent temperature fluctuations inside the plant.
Modular Factory Fabrication Shortens Power Grid Access Cycle
All load-bearing steel beams, vertical support pillars, equipment bracket frames and connecting components are fully pre-processed in factory via numerical control cutting, deep penetration welding and precision hole positioning. On-site construction only requires high-strength bolt assembly without mass on-site welding. After receiving advance payment and finalized engineering drawings, core steel frames for the first construction zone can be delivered within 60–70 days, drastically cutting the overall power plant construction period and accelerating grid connection progress.
Multi-zone Zoned Customization Matching Full Power Station Layout
We provide targeted structural schemes for different functional zones of power plants: boiler main frame, turbine house platform, auxiliary machinery workshop, chemical water treatment building, exhaust flue support frame and outdoor power equipment support steel structure. We can reserve embedded mounting bases for transformers, fans, pipelines and large power equipment, fully matching the layout logic of thermal power, biomass power, photovoltaic supporting power stations.
Superior Vibration Isolation & Seismic Safety for Energy Infrastructure
The whole steel frame adopts multi-layer vibration damping structural design, which effectively absorbs continuous mechanical vibration generated by generators and steam turbines to avoid structural fatigue damage. Seismic grade meets international energy infrastructure standards; reinforced diagonal bracing systems are equipped for seismic zones, providing stable structural protection for critical power production facilities and ensuring continuous power supply under geological emergencies.
Integrated Anti-Corrosion & Dustproof System for Harsh Plant Environment
Special multi-layer industrial anti-rust coating system is applied on all steel components, resisting erosion from flue gas, chemical wastewater dust, industrial acid mist and high humidity inside power plants. The closed frame structure with reserved drainage and dust cleaning channels reduces long-term erosion of steel components by industrial pollutants, greatly extending the service life of the power station main structure.
Low Carbon Circular Steel System Aligned With Global Energy Transition
100% recyclable heavy steel components support facility reconstruction, zone expansion or equipment renewal of power plants without massive demolition waste. Light self-weight of steel frames reduces foundation engineering material consumption. The whole manufacturing process complies with international low-carbon factory standards, perfectly matching the green construction bidding requirements of new energy and thermal power upgrading projects worldwide.
Professional Energy Engineering Full Lifecycle Technical Support
Our structural design team specializes in power station engineering standards, fully compliant with AS/NZS energy facility codes, Eurocode industrial steel specifications and international thermal power design standards. We provide free equipment load calculation, pipeline layout coordination drawing optimization, and complete engineering inspection documents for project bidding and acceptance; overseas on-site assembly technical guidance is available on demand.

Product Details

1. Product Overview

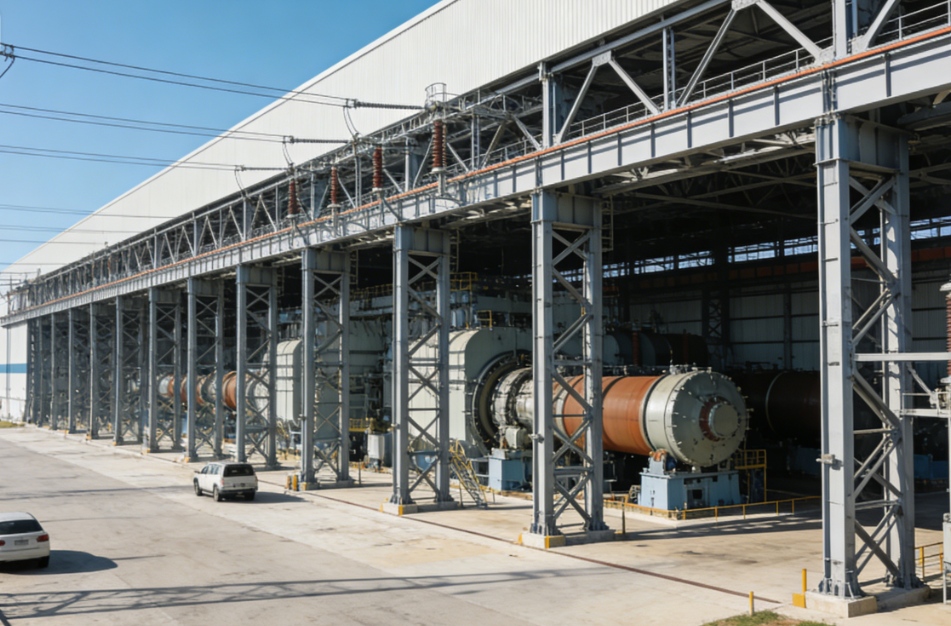

Heavy-duty prefabricated steel structure power plant frame is a professional heavy industrial steel building system tailored for energy production projects, covering thermal power plants, biomass power stations, waste incineration power plants and supporting auxiliary workshops of photovoltaic wind power storage stations. The overall system is composed of super thick welded H-beam main load-bearing girders, heavy-duty rectangular tube support columns, channel steel equipment platforms, angle steel anti-seismic bracings, special-shaped steel pipeline supports and complete sets of high-strength connecting fittings. All structural components are precisely manufactured in factory and shipped in separate containers, then spliced into an integrated power plant main frame on construction sites via bolt connection. It has become the mainstream structural solution for new-built and upgraded energy infrastructure projects across the globe.

2. Raw Material & Precision Production Technology

Core Raw Material Grade: Q355B high-yield strength structural steel; Q355NL low-temperature impact resistant steel for alpine region power stations; thickened special steel for boiler room high-temperature bearing zones, stable mechanical performance under long-term heavy load and temperature variation.
Core Steel Components: Super thick welded H-beam primary load girders, heavy square tube vertical support columns, channel steel operation platform frames, angle steel anti-seismic cross bracings, round steel pipeline suspension brackets, customized special steel embedded bases for large power equipment and all loose connecting hardware.

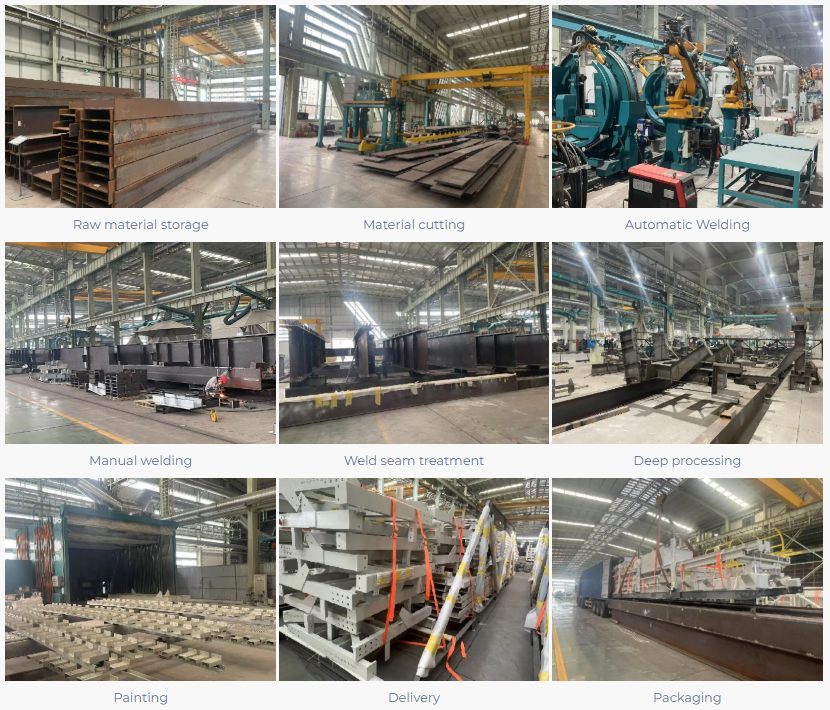

Standard Production Process: CNC plasma thick steel cutting, automatic submerged arc deep penetration welding, ultrasonic welding flaw detection, precision CNC drilling, surface industrial anti-rust coating spraying, full-size dimensional calibration before packaging delivery.

3. Production & Delivery Cycle Regulation

The total production cycle of the full set power station steel framework ranges from 60 to 90 working days, counted from the date we receive your advance payment and fully confirmed power plant construction drawings. The first batch of core load-bearing beams and column components for the main workshop can be shipped within 60–70 days. All heavy steel parts are fixed with reinforced steel support frames inside containers, wrapped with anti-collision protective layers to avoid extrusion deformation and coating damage during long-distance sea and land cross-border transportation. We can lock ocean and inland transport freight rates in advance to hedge against logistics cost surges.

4. Diversified Application Functional Zones

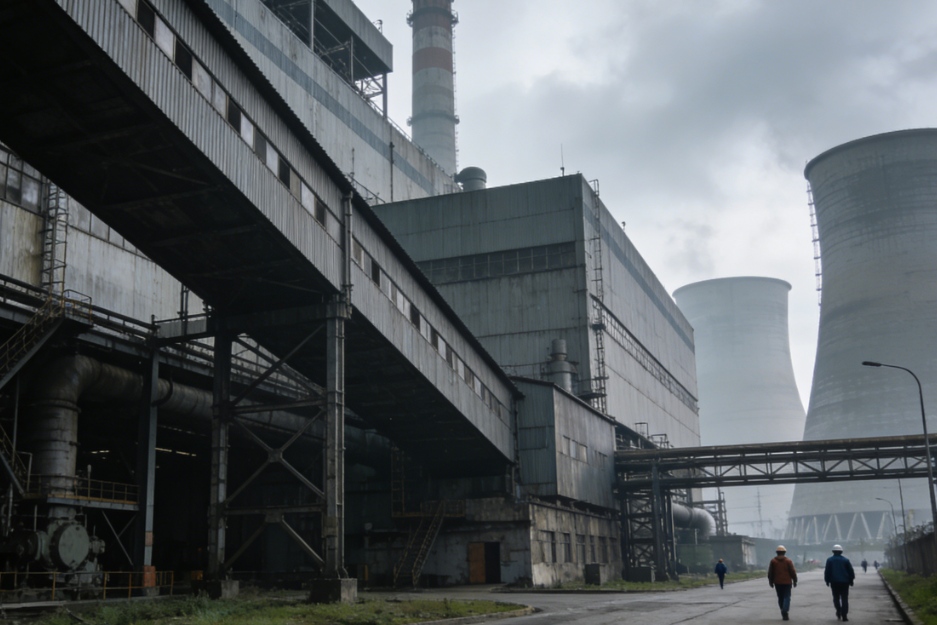

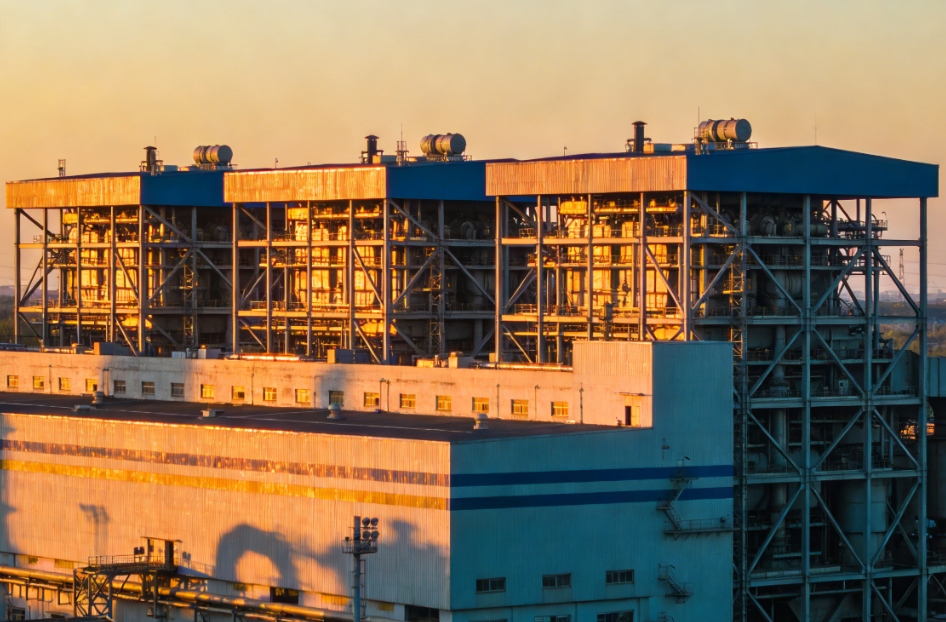

Thermal Power Core Zones: Boiler house main bearing frame, turbine generator workshop, exhaust flue steel support structure, coal conveying corridor steel frame
New Energy Power Projects: Biomass power station main workshop, waste-to-energy plant incineration workshop, energy storage station auxiliary steel building

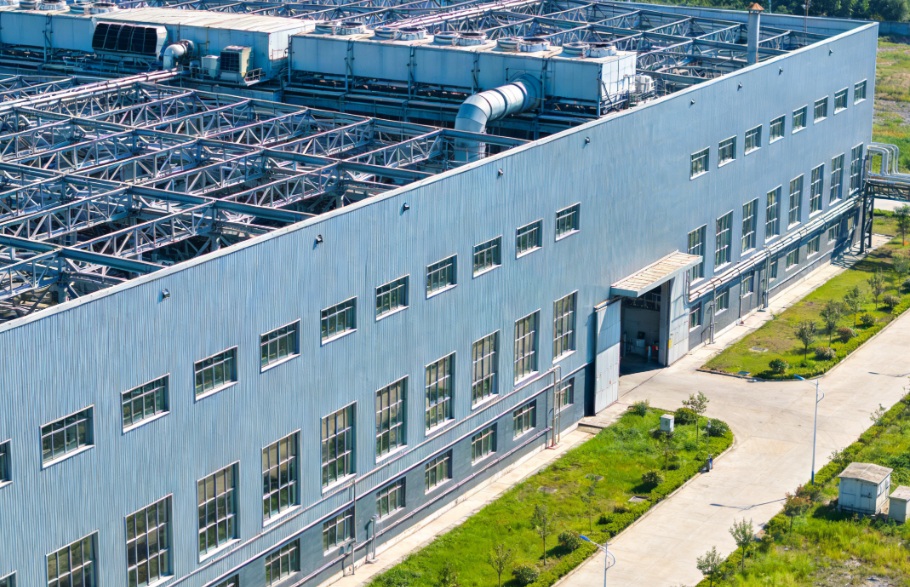

Auxiliary Supporting Facilities: Chemical water treatment workshop, power distribution room steel frame, cooling tower support platform, staff operation control building
Outdoor Matching Structures: Transformer equipment support frame, power cable trench steel bracket, outdoor pipeline fixed steel structure

5. Global Standard Compliance & Factory Inspection

Our structural design strictly follows international energy infrastructure specifications: China GB thermal power steel structure standard, Australian AS/NZS industrial heavy load code, European Eurocode 3 steel structure design standard. We can adjust beam section thickness, bracing layout and platform bearing capacity according to local wind load, snow load, seismic grade and equipment weight parameters. Every batch of finished steel components will pass welding non-destructive testing, coating thickness inspection and load-bearing simulation test before shipment, with complete material test certificates and factory inspection reports delivered together with goods.

6. Shipping & Commercial Execution Terms

Bill of Lading Regulation: If you do not specify original bill of lading requirement, telex release will be processed by default. If the consignee information on B/L includes "TO ORDER", only original paper bill of lading can be issued.
Container VGM Rule: VGM verified weight data must be submitted to the terminal before container return to yard; delayed declaration will block container stacking and ship loading arrangements.
Order Execution Clause: Once the formal production order is issued, order cancellation shall not be accepted. Heavy steel raw materials will be cut and welded immediately according to confirmed drawings after order confirmation.

7. Full Lifecycle After-Sales Service System

Free pre-order technical service: equipment load calculation, pipeline and equipment layout coordination drawing optimization, seismic and thermal expansion structural scheme adjustment
Complete bidding & export document package: commercial invoice, packing list, raw material MTR certificate, welding flaw detection report, structural safety inspection file
Whole-process remote online installation guidance; professional energy engineering technicians can be dispatched to overseas construction sites for on-site assembly supervision upon request
Long-term supply of replacement spare parts: support brackets, connecting beams, platform components for power plant expansion, equipment replacement and daily maintenance
24-hour rapid response channel for all commercial, technical and logistics consultation during the whole project cooperation cycle
