Municipal Prefabricated Steel Composite Bridge

High Load Capacity: Engineered to withstand heavy urban traffic, including emergency and freight vehicles.
Fast Installation: Prefabricated components reduce on-site construction time by up to 40%.
Low Maintenance: Weather-resistant steel and anti-corrosion coating extend service life beyond 50 years.
Seismic & Vibration Control: Built-in damping design for superior stability in high-traffic zones.

Product Details

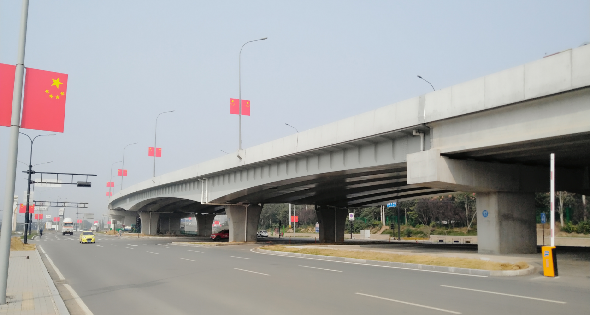

Urban-Ready Structural Design
Our municipal bridge system is specifically developed for modern city environments. It supports multi-lane configurations, separate pedestrian walkways, and utility corridors for water, gas, and fiber optic cables. The modular design allows for future expansion without major reconstruction.

Safety & Compliance
Every component meets international bridge design standards (AASHTO, Eurocode, or equivalent). Features include high skid-resistance pavement, anti-climb barriers, and LED-integrated railings for night visibility. A drainage system prevents ponding, reducing hydroplaning risks during heavy rain.

Smart Integration Ready
The bridge structure is compatible with smart city infrastructure. Pre-installed conduits allow for real-time traffic monitoring sensors, weight-in-motion systems, and environmental sensors (air quality, vibration, temperature). This makes future upgrades quick and non-invasive.

Durability in All Seasons
Using weathering steel (Corten) or hot-dip galvanized finish, the bridge resists deicing salts, freeze-thaw cycles, and high humidity. Expansion joints are sealed with high-movement elastomeric systems to prevent water ingress and corrosion at critical points.

Sustainable Choice
Reduced material waste from prefabrication, 100% recyclable steel, and design optimization for natural daylight under the bridge reduce the overall carbon footprint by approximately 25% compared to conventional cast-in-place concrete bridges.

Custom Dimensions Available
We support spans from 10m to 50m, widths from 8m to 30m, and any skew angle. Loading from pedestrian-only up to HL-93 or equivalent truck loading. 3D structural analysis report and installation manual included with every delivery.
