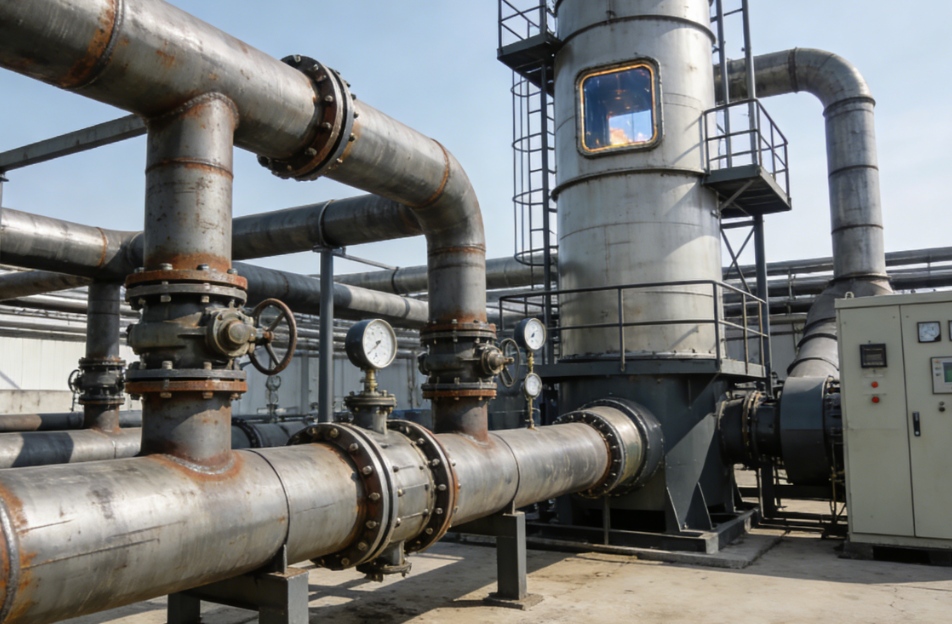

Steel Structure Dual-Tower Flue Gas Treatment System

Our Guoshun steel structure flue gas treatment system is a mature integrated environmental protection device specially developed for high-pollution industries including steel plants, thermal power plants, chemical factories and cement plants. Centered on the dual-tower dual-circulation core process, this system efficiently removes sulfur dioxide, dust and other harmful substances from industrial flue gas, helping enterprises stably reach strict ultra-low emission environmental requirements.

1. Overall Steel Structure Design

The main absorption tower, support frame, connecting pipe support and platform staircase all adopt thickened carbon steel with multi-layer anti-corrosion coating. Compared with concrete towers, steel structure equipment has obvious advantages: short construction cycle, lightweight overall structure, convenient transportation and on-site assembly, flexible disassembly and later expansion transformation. CNC precision cutting and welding are adopted for all steel components, with uniform stress distribution and strong structural stability to resist wind, vibration and long-term flue gas corrosion erosion.

2. Core Dual-Tower Circulation Process Principle

Two independent absorption towers are arranged in parallel, equipped with separate circulation pump groups, spray layers and demisting layers. High-sulfur flue gas enters the first tower for primary rough desulfurization, then flows into the second tower for deep fine purification. Double-stage washing greatly improves the contact reaction time between flue gas and absorption liquid, lifting sulfur removal efficiency up to 99%. The dual-tower split operation mode also allows single-tower maintenance without full-line shutdown, minimizing production loss for customers.

3. Multi-Pollutant Collaborative Purification Function

This system supports synchronous desulfurization and dust removal. Built-in high-efficiency atomization nozzles and swirling flow demister can intercept fine dust particles while absorbing acidic gas. Even when the flue gas load, sulfur content and dust concentration fluctuate sharply during factory peak production, the outlet emission concentration can remain steadily below the ultra-low emission limit value, avoiding environmental supervision risks caused by unstable exhaust indexes.

4. Customized Configuration for Different Working Conditions

We provide personalized matching according to customers’ actual parameters:

• Adjustable tower diameter & height based on hourly flue gas volume

• Optional absorption liquid system: limestone-gypsum, ammonia water, sodium alkali process

• Corrosion grade upgrade for strong acid, high-temperature flue gas scenes

• Automatic PLC control system with real-time data monitoring, remote parameter adjustment and fault alarm

• Auxiliary equipment: sludge dewatering machine, oxidation fan, liquid storage tank, waste water recycling unit

5. Reliable Production & Global Supply Capacity

We own a large standardized manufacturing base with multiple 24-hour uninterrupted production lines. A professional technical team controls every production link from steel raw material incoming inspection, welding forming, anti-corrosion painting to finished product pressure test. We accept small trial orders and large whole-plant emission renovation turnkey projects. Strict sealed packaging is adopted for all equipment parts to ensure no damage during long-distance sea and land transportation, and we provide complete installation drawings, operation manuals and on-site technical guidance services worldwide.

6. Wide Application Scenarios

• Thermal power & biomass power generation plants

• Steel smelting, rolling mill and coking enterprises

• Chemical, pharmaceutical and fertilizer production factories

• Cement kiln, glass furnace and industrial boiler waste gas treatment

If you are looking for a long-term reliable flue gas treatment equipment supplier with mature technology, stable delivery and strong customized ability, welcome to send us your flue gas parameter data for free scheme quotation and technical communication.
